Godown wiring circuit is needed in tunnel like structures warehouses long passages big godowns having lots of rooms and different portions. Staircase wiringएक बलब क चर जगह स ऑन ऑफ कस कर by electric guruji duration.
Godown Wiring Diagram Pdf Wiring Diagram Database

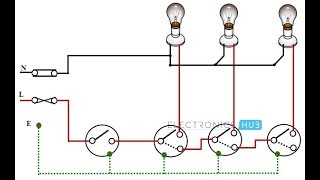

Staircase and godown wiring. Godown wiring uses to operate lampsloads in a sequential manner where only one load operates at a time. It was the best choice to save electricity and energy consumption where only one load ie. One light two switches wiring. In today basic electrical wiring installation tutorial we will discuss step by step method of staircase wiring installation by using 2 way switches spdt single pole double through switch. Not only a light we can also adopt this wiring technique for some other electrical devices. The original application for the godown wiring method was used in large warehouses where the lights would only be on in the area that was occupied.
That is to operate the load from separate positions such as above or below the staircase from inside or outside of a room or as a two way bed switch etc. Ryb electrical 1364538 views. Staircase wiring is a common multi way switching or two way light switching connection. Light bulb can be operate at a time. Also the same wiring circuit diagram can be used for 2 way lighting or controlling electrical appliances from two different places by using two way switches. Actually if the staircase spans several levels and the wiring configuration allows the lights to be on at one level then it is the same as the godown or the godawan wiring method.
Actually if the staircase spans several levels and the wiring configuration allows the lights to be on at one level then it is the same as the godown or the godawan wiring method. Two way switch 5a 230 v 2 nos. The original application for the godown wiring method was used in large warehouses where the lights would only be on in the area that was occupied. Etc where the light is only required for passage or it requires only at one position at a time. A stair case wiring can be used only for human comfort. Electric guruji 309836 views.

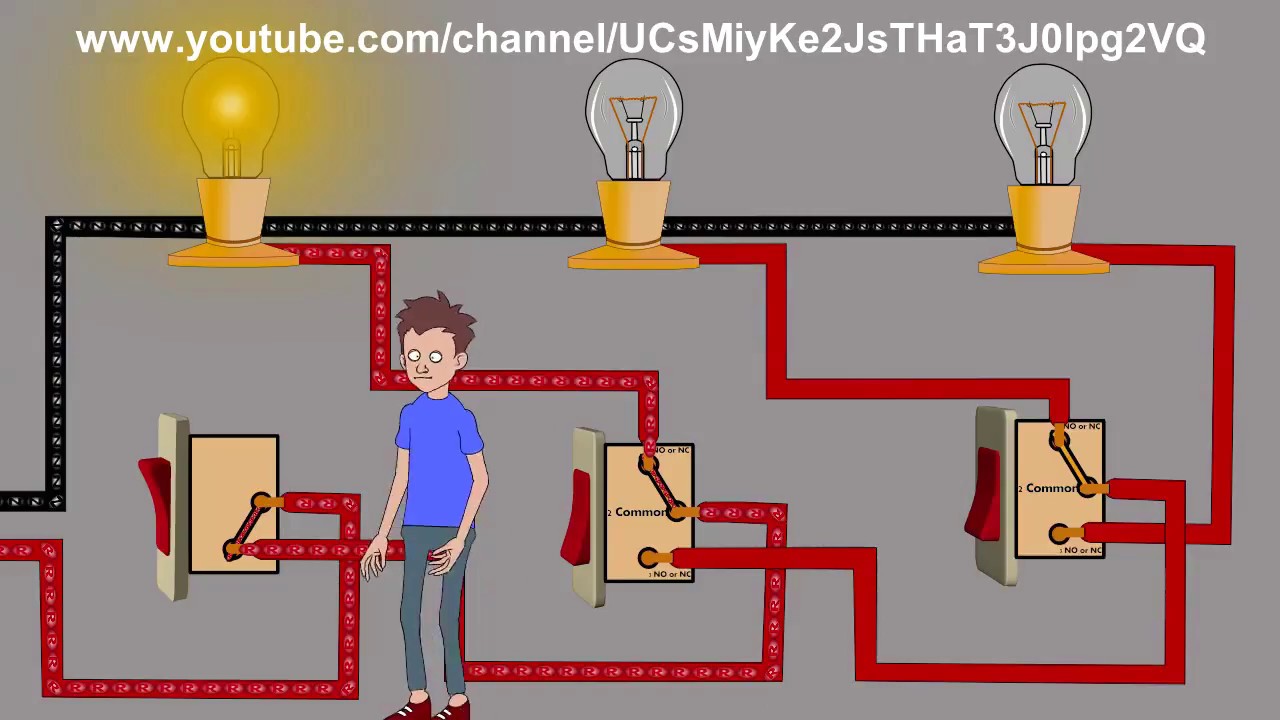

Star delta connection without motor use incandescent light bulb star delta starter duration. Here one lamp is controlled by two switches from two different positions. As its name implies godown wiring it is commonly used for light switching in godowns tunnel like structures long passages. Stair case wiring or godown wiring or warehouse wiring is a term used to denote where a single light is controlled from various places.
