Same 5 pickup configurations as the prs 5 way rotary switching. Use these extra lugs for alternative tone control or pickup combinations.
Megaswitch S Schaller Webshop

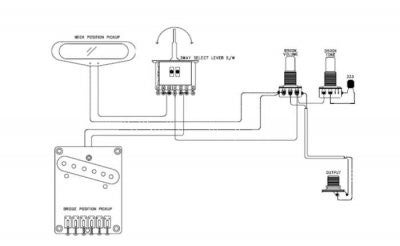

Schaller 5 way switch wiring. Please note that left hand designs are not quite reverse images. Extensive and easy to follow wiring diagrams are included. 2 pickup guitar wiring diagrams. 1 pickup guitar wiring diagrams. It is designed for guitars with two humbuckers. 2 humbuckers1 single coil.
1 humbucker 2 single coils. Guitar wiring diagram with 2 humbuckers 5 way 4 pole lever switch one volume and one tone control. The wiring diagrams are illustrations of right hand guitars in which case the megaswitch is built with the plated side facing the strings. Breja toneworks 115328 views. With this switching system the neck and the bridge pickups in position 3 are in operating mode although the latter the bridge pickup is spilt. 50 videos play all mix the inner workings of a 5 way switch and various wiring options youtube how to wire your stratocaster test pots select capacitor and make tone control wiring decisions.
12 lugs provide twice the wiring options as previous 6 lug versions. 2 humbuckers w 3 way switch. If you are using standard humbuckers seymour duncan gibson etc you must mount. Be warned this is not a carbon copy of a standard 5 way strat switch youll have to look up the wiring diagram on the schaler web site to work out where to wire the pick ups the volume and tone controls. 3 pickup guitar wiring diagrams. P model megaswitch replicate the functions of a prs rotary switch in a 5 way lever switch.
The plate is now bent over the switch which the old generic covered switch did but he switch hasnt shorted out which the old one did. 1 humbucker 1 volume 1 tone. 1 humbucker 1 volume. 5 neck connections 1 mid hot wire 2 neck hot wire 3 output 4 5 6 to 7 bridge hot wire 7 to 6 bridge hot wire ground. The switch is in position 1 when the lever is positioned in the direction of the bridge. 2 humbuckers w 5 way switch.
50 videos play all mix import versus standard 5 way switches youtube the inner workings of a 5 way switch and various wiring options duration. All three cold wires hss4. 1 humbucker1 single coil.
