Just replaced blower motor resistor to fix fan not coming on. Iv been having the same problems with my 2003 durango i have went threw 4 motors 4 resisters and 2 wire harnesses now dodge jist told me that there was a desinge flaw in the wireharness so they sold me a new one for 2008 model and said its been.
2002 Dodge Grand Caravan Electrical Schematic 2008 Dodge
2003 dodge dakota blower motor resistor wiring diagram. Dodge dakota 03 47l bad blower moter high amps melted resistor and plug it was already a replacement pigtail. Hvac plastic heater blower motor wfan cage blower motor resistor eccpp for 2001 2004 dodge dakota 2001 2003 dodge durango 43 out of 5 stars 77 3999 39. Ac will not turn in mirror defrost will not turn on. The problem with the blower resistor. The blower motor wiring on about 285000 of the above vehicles contains an undersized terminal. 1 answer 2003 dodge dakota is stuck on defrost only blowing hot air.
2002 dr dodge ram 1500 pick up trucks. What is causin read more. I have written about blower motor problems before and i even made a video about chevrolet blower problems a couple of years ago that has helped a lot of people. Blower motor noise replacement 2003 dodge ram 2500 install remove replace how to change duration. Ive replaced blower moter resistor and have new pigtail. This could cause the blower motor to become inoperative.
Localized heating from operating the blower motor on high speed may cause the terminal to relax and lose electrical contact. I have a 2002 durango slt and my blower motor resistor wiring harness connector just burned up. I need the wiring lineu read more. Wiring diagram for 2001 dakota and durango blower motor resistor. Blower motor resistor 01 dakota duration. Just replaced blower motor resistor to fix fan not coming on.

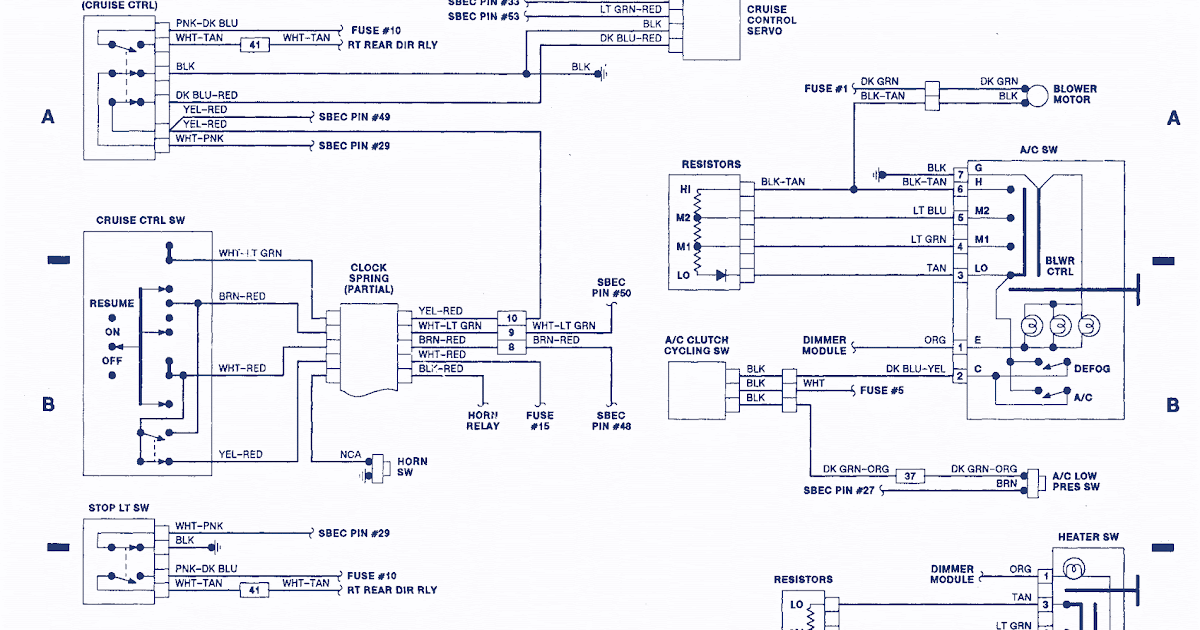

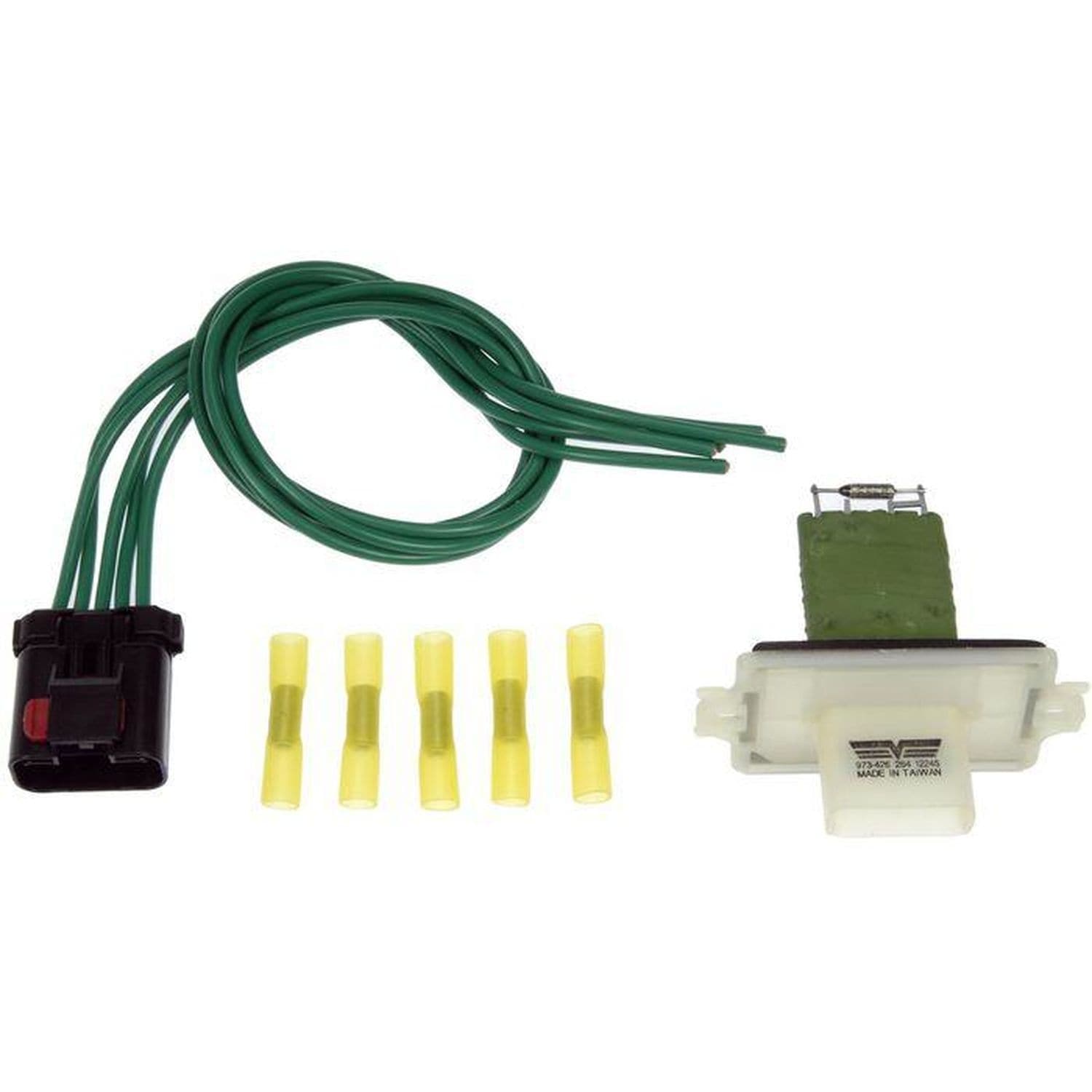

Im surprised after digging out a wiring diagram that theres only one fuse and no relay in this circuit. 2003 dodge dakota is stuck on defrost only blowing hot air. With this kit available from napadorman make sure to use the proper crimping tool that crimps tightly. The dodge circuit is very different than the gm set up. Dodge cars trucks. Ac will not turn in mirror defrost will not turn on.
I have an 03 dodge durango 47l the wiring harness conected to the blower resistor to wires get hot the drkbluyellow and the blktan when fan is on high it is melting the plastic clip.
