They also have one wire for trailer brakes and one wire for a battery connection. 6 way plug wiring diagr am standard wiring post purpose wire color tm park lights brown gd ground black or white s trailer brakes blue lt left turnbrake light yellow rt right turnbrake light green a accessory red the most common variances on this diagram will be the bluebrake redacc wires will be inverted.
6 Pin Trailer Plug Diagram Wiring Diagram Images
Wiring a 6 wire trailer plug. You will have the following functions. Plug wiring diagram load trail llc for 6 wire trailer plug diagram image size 485 x 351 px and to view image details please click the image. The red and blue wire can be used for brake control or auxiliary. If your vehicle is not equipped with a working trailer wiring harness there are a number of different solutions to provide the perfect fit for your specific vehicle. I have included a help article on trailer wiring that includes a diagram and wiring matrix that explains wire color function and gauge needed among other helpful information. If there is no.

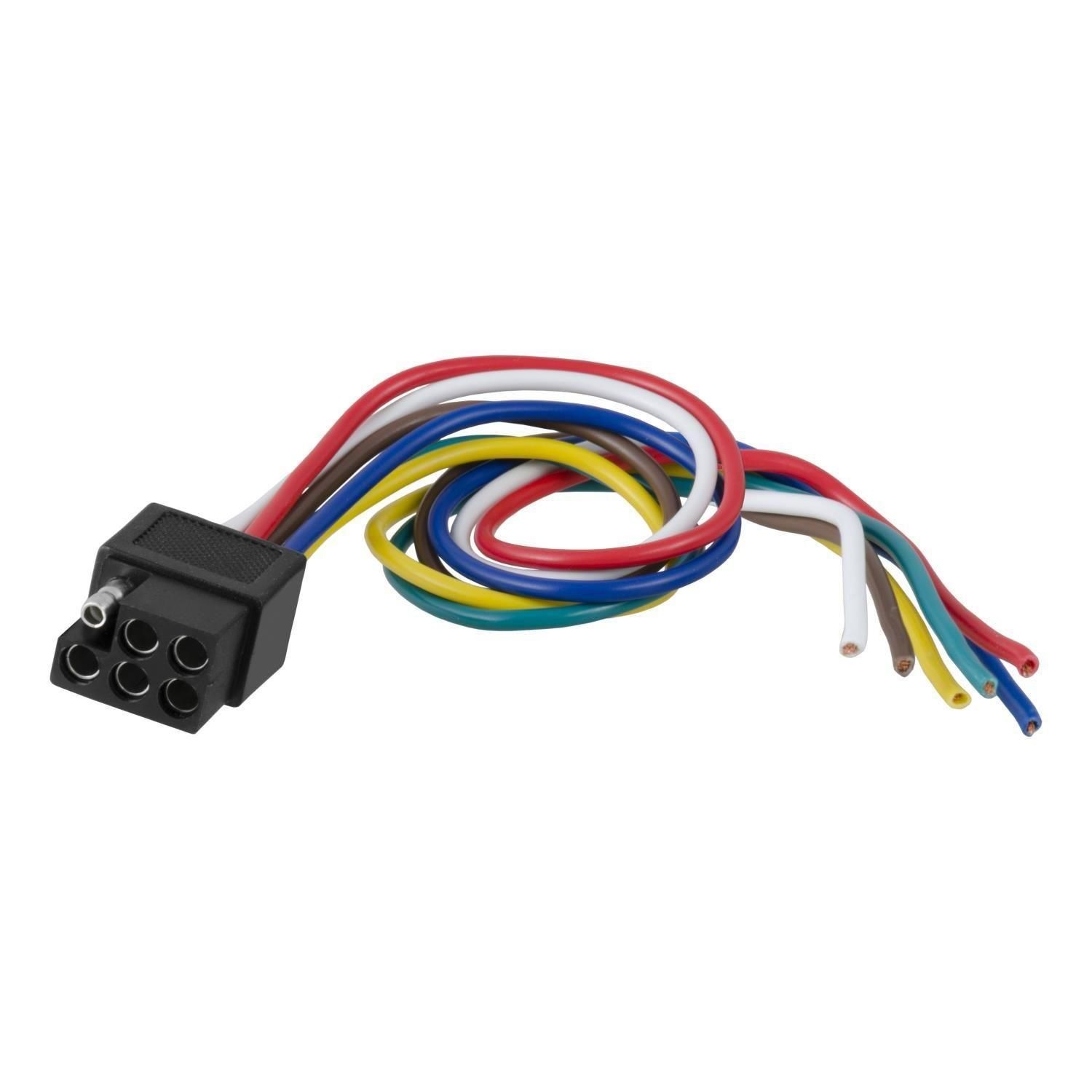

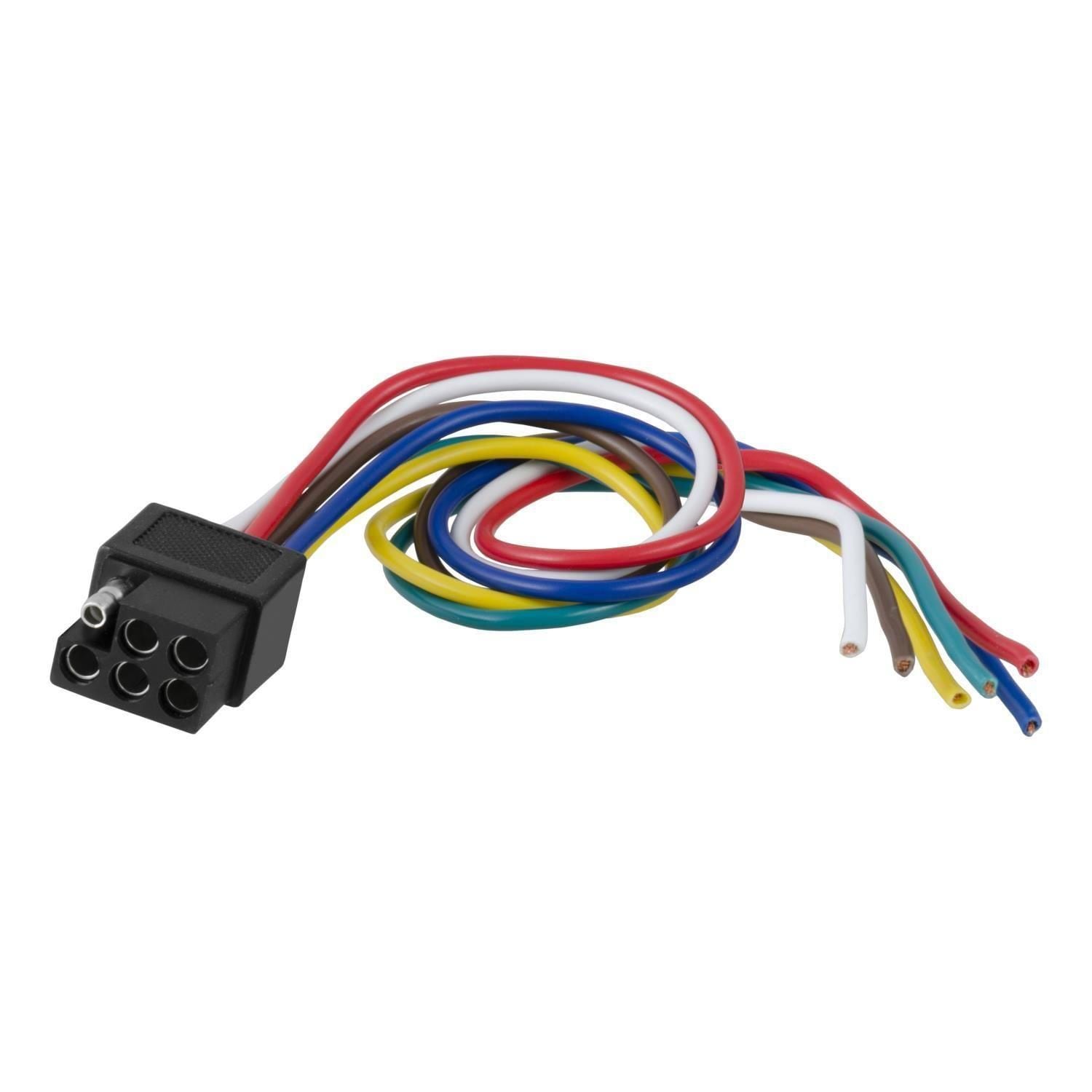

Use on a small motorcycle trailer snowmobile trailer or utility trailer. 6 way trailer connectors are often used on gooseneck trailers but can be used for other types such as utility boat trailers and 5th wheels. I recommend adding a 7 way molded trailer wire connector like part h20046 and a junction box like part 38656. If your vehicle came prewired for towing it may have a factory trailer harness connection uscar connector in the rear bumper. 807 234568 way male and female trailer wire extension connector234568 pin trailer plug 36inch for led brake tailgate light barstrailer wiring harness extension connector8 way square 50 out of 5 stars 13. 6 way connectors include the basic connection of running lights brake lights turn signals and a ground wire.
Complete with a color coded trailer wiring diagram for each plug type this guide walks through various trailer wiring installation solution including custom wiring splice in wiring and replacement wiring. Right turn left turn ground tailmarker brake battery. You can certainly add a 7 way trailer connector to your trailer with 6 wires. 6 way system rectangle plug. You would simply have 1 pin on the 7 way connector that did not function. There is a suggested and common method for 6 function trailer wiring.
34 inch by 1 inch 6 way rectangle connectors right turn signal green left turn signal yellow taillight brown ground white. Here is a picture gallery about 6 wire trailer plug diagram complete with the description of the image please find the image you need. To determine how to wire up trailer lights you need to know whether your vehicle has a factory installed trailer package and whether a plug and play t connector is available for it on the market.
