The output selfholding type transducer continues to hold the contact output once the detector actuates so far as it is reset with a reset button or the power is cut. The switch is designed with manual reset type of mechanism.

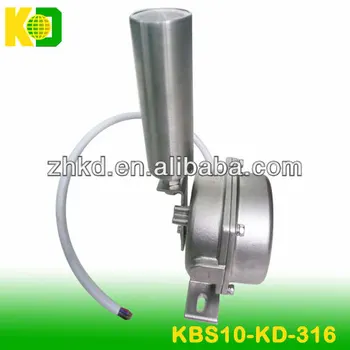

Conveyor Belt Sway Switch View Belt Sway Switch Kaidi Product Details From Guangdong Kaidi Energy Technology Co Ltd On Alibaba Com
Belt sway switch connection diagram. The switch is carefully designed to allow over travel of the actuating roller and the switching mechanism is isolated from the mechanical actuating roller. Therefore actuation of any one of these pull cord switches will stop the concerned conveyor until the particular switch is manually reset. Each product contributing to the reliability and safety of material handling systems. It is easy and free. Pull rope switch all the pull cord switches installed along an individual belt are electrically wired in series and connected to the control station by a two core cable. The connection is in series and if any breakage occurs at the.
5 units of detectors can be connected to one transducer. Proximity type zero speed switchzss rated voltage 12vdc. The connection is in series and if any breakage occurs at the. When the rope is pulled from any side. Lengths of conveyors. Used to detect speed of the rotating moving object.
Of pull cord belt sway switches per conveyor. In this case the system cost practically doubles. Husqvarna yta24v48 96045005200 2015 07 exploded view parts lookup by model. Pull cord switch is mounted on the walkway side of the conveyor belt preferably at about every 20 25 meters. The switch get operated. Alternator voltage regulator instrument panel starter and drive distributor.
The output selfholding type transducer continues to hold the contact output once the detector actuates so far as it is reset with a reset button or the power is cut. Pull cord switch elaw 61p belt sway switch elap 20 max. Belt sway switch a self resetting switch that is actuated when the belt sways beyond the permissible limits. 5 units of detectors can be connected to one transducer. Pull cord switch elaw 61p belt sway switch elap 20 max. Complete exploded views of all the major manufacturers.
One panel per. Ford truck diagrams and schematics. By 1980 a range of belt conveyor safety switches inclusive of pull cord belt sway roller limit deinterlocking rotary cam switches was introduced in the market. However if separate tripping commands for pull cord switch and belt sway switch are desired two master units and two control cables per conveyor are a must. Unless and until the handle is reset to normal position manually the switch remains in operated.
