Three Phase Changeover Switch Diagram

How to connect a portable generator to a home without changeover or transfer switch wiring of portable generator to home supply with separate mcb how to connect a 3 phase generator to home with 4 pole automatic changeover. The left side four slots connection points are connected to the load then.

Electrokaveh Cam Switch Diagram Of Standard Ka Type

Electrokaveh Cam Switch Diagram Of Standard Ka Type

Three phase changeover switch diagram. The three phase utility power as l 1 l 2 l 3 n are directly connected to the upper side of manual changeover switch while the backup power of three phase generator is connected to the first four right slots of at lower side. This post i will shown the complete method of manual or handle change over switch the knob type manual changeover switch wiring same like handle change over switch and its just like a voltmeter sector switch. 0 230 v digital voltmeter 1 5. 720 copper wire a few meters 7. The generator does require time to get up to speed before the manual changeover switch can be placed on generator the recommended time for this is 30 seconds. 1 cm and 5mm thick mdf board 2.

3 phase manual changeover switch wiring diagram or three phase manual transfer switch wiring diagram. The engineering mindset 913785 views. The changeover switches connect the critical loads circuits the main power grid the generator or an. A toggle switch for switching on off the voltmeter 1 5. A complete guide about wiring and installation about the rotary changeover rotary cam transfer switch for single phase 3 phase system with main supply and generator supply and load connection. They are available for single 25a 40a or 63a and three phase 40a or 63a applications including the switching of generators.

Following materials were used. 63 amp 4 pole changeover switch on load type 3 its lt make model number was not mentioned anywhere 3. Single phase electricity explained wiring diagram energy meter duration. As you know that i already published a post and diagram about the manual changeover switch wiring diagram single phase with complete installation and wiring connection method. The manual changeover switch is wired into your electrical distribution board db in your premises allowing it to power to everything or just specific circuits if wired this way. Our modular manual changeover switches are a unique solution for secure supply of power to your facility.

63 amp rated 3 terminal connectors 2 4. Manual changeover switch are mostly use in 2 types in which one have the move able knob and 2nd one the handle changeover switch. Phase indicator lamps ryb 3 6. How to wire a single phase generator change over switch. The authors in 4 designed and implemented a three phase automatic change over switch with generator control mechanism to provide an automatic switching mechanism that transfers the consumer. How to connect a 1 phase generator to a home by using automatic changeover switch or 2 pole manual transfer switch mts.

Gallery of Three Phase Changeover Switch Diagram

Manual Phase Changing Switch 63 Amp 4 Steps With
Download Now
Manual Phase Changing Switch 63 Amp 4 Steps With
9000w Generator Transfer Switch Diagram 3 Phase Changeover
Download Now
9000w Generator Transfer Switch Diagram 3 Phase Changeover
How Do You Wire A 3 Phase Changeover Switch Eet Medium
Download Now
How Do You Wire A 3 Phase Changeover Switch Eet Medium
Image Result For 3 Phase Changeover Switch Circuit Transfer
Download Now
Image Result For 3 Phase Changeover Switch Circuit Transfer
Grid Mains To Generator Changeover Relay Circuit Homemade
Download Now
Grid Mains To Generator Changeover Relay Circuit Homemade
Automatic Changeover 2 Pole Changeover Switch Manufacturer
Download Now
Automatic Changeover 2 Pole Changeover Switch Manufacturer
1 Block Diagram Of Automatic Phase Selector And Changeover
Download Now
1 Block Diagram Of Automatic Phase Selector And Changeover
Electrical Smithy Automate Cnc Machine Tools
Download Now
Electrical Smithy Automate Cnc Machine Tools
Xc 1091 3 Pole Transfer Switch Wiring Diagram Download Diagram
Download Now
Xc 1091 3 Pole Transfer Switch Wiring Diagram Download Diagram
Transfer Switch Wiring Diagram 3 Phase 4 Waie Wiring Diagram
Download Now
Transfer Switch Wiring Diagram 3 Phase 4 Waie Wiring Diagram
3 Phase Change Over Switch Wiring Diagram Wiring Library
Download Now
3 Phase Change Over Switch Wiring Diagram Wiring Library
Automatic Transfer Switch Ats Between Two Low Voltage
Download Now
Automatic Transfer Switch Ats Between Two Low Voltage
9000w Generator Transfer Switch Diagram 3 Phase Changeover
Download Now
9000w Generator Transfer Switch Diagram 3 Phase Changeover
4 Pole Off Load Changeover Switch
Download Now
4 Pole Off Load Changeover Switch

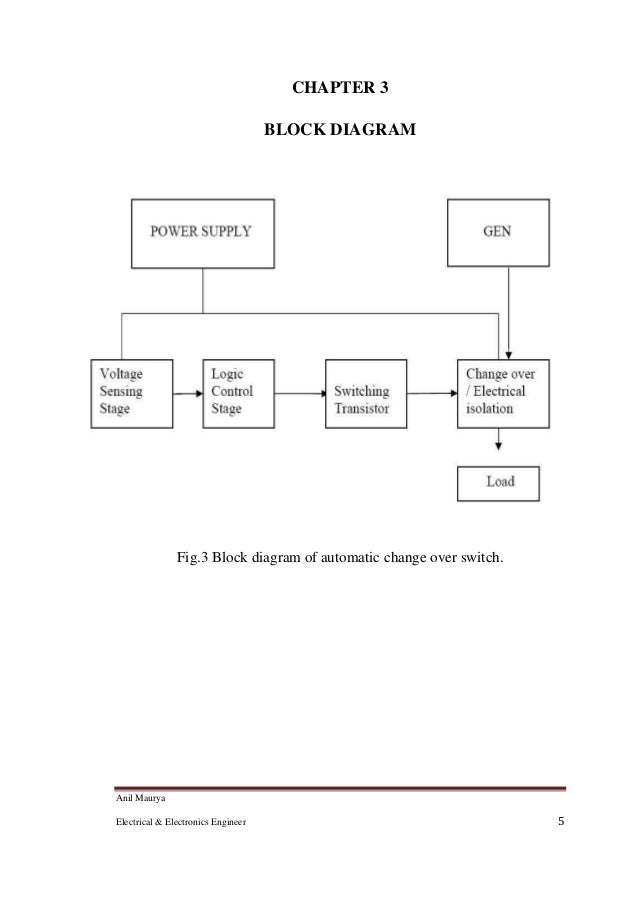

Three Phase Shifter Appliance
