Semi Trailer Wiring Schematic

This vehicle is designed not only to travel one place to another but also to take heavy loads. The image above shows a single axle trailer and the next image shows wiring for tandem axles.

7 Pin Semi Trailer Plug Wiring Diagram H1 Wiring Diagram

7 Pin Semi Trailer Plug Wiring Diagram H1 Wiring Diagram

Semi trailer wiring schematic. Eliminate hours of frustration by using our trailer testing equipment and quickly identify problems in the wiring of the trailer. The wiring color codes and wire gauge recommendations for the pollak heavy duty 7 pole round pin trailer wiring connector item pk11700 are listed below. This project requires a trailer lighting kit that includes a wiring harness small connection clips a couple rear turn signals and a couple side mounted lights. A wiring diagram is a simplified standard photographic representation of an electric circuit. To connect the electric system of your trailer to the vehicle you will be using special connector. White ground return 8 gauge black clearance side marker identification 12 gauge.

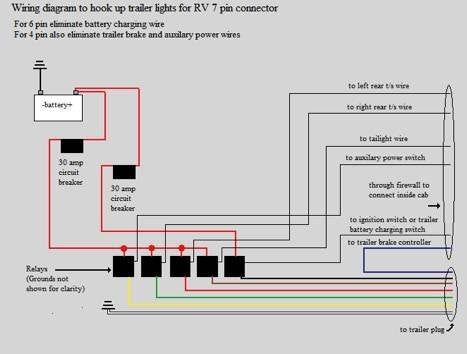

Typical trailer wiring diagram and schematic. Trailer light wiring basics it will help to have an understanding of trailer light systems and we recommend reviewing trailer wiring diagrams before starting this project. Below is the generic schematic of how the wiring goes. Collection of semi trailer wiring schematic. Is there a book or easy diagram to follow. Only the blue brake and white ground wires are different.

Figure 6 55 trailer standard wiring colors. In this case you will need a set of wiring taps and a pair of pliers. This article will be discussing 7 pin semi trailer wiring diagram. I have seven pin round connector. Note in the schematic layout figure 6 56 that the trailer running lights are broken down into two circuits. The black wire and the brown wire.

These 2 wire diagrams fit the needs for most trailers. 4 pin trailer wiring diagram. What i need to see is where each wire goes and how it is connected to the lights on the trailer. It reveals the parts of the circuit as streamlined forms as well as the power and signal connections in between the tools. 6 way trailer connectors 6 way trailer connectors are often used on gooseneck trailers but can be used for other types such as utility boat trailers and 5th wheels. The black wire should be connected to the front marker and clearance lamps the identification lamp three bar light the two.

6 way connectors include the basic connection of. I need to see a wiring schematic to wiring a 1985 40 ft flatbed trailer. Extrapolate the same expansion for additional axles. 7 pin semi trailer wiring diagram 7 pin round semi trailer wiring diagram 7 pin semi trailer wiring diagram people today comprehend that trailer is a vehicle comprised of rather complicated mechanisms. Above we have describes the main types of trailer wiring diagrams.
