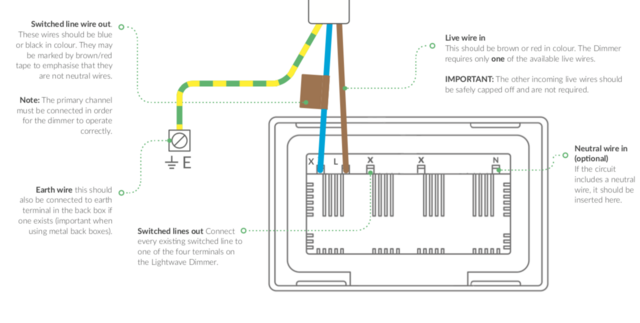

Ive also attached an image of the lightwave wiring from the instuctions. It answers your question.
Wf 4880 4 Way Switch And Dimmer Schematic Wiring
Lightwave 2 way wiring diagram. A 2 core cable brown and blue carries the live and switched live to the wall switch and up to the light fitting. 27 aug 2003 messages. Click here to find out more about our smart home devices. 2 way switching means having two or more switches in different locations to control one lampthey are wired so that operation of either switch will control the light. An extra 3 core cable brown black and grey connects the two wall switches together. This arrangement is often found in stairways with one switch upstairs and one switch downstairs or in long hallways with a switch at either end.
Lightwave rf gen 2 smart series review duration. Enabling each of them to independently turn the light on or off. How to install a lightwave connect series 2 way dimmer duration. Wiring new smart switch lightwave rf gen 2 post by someone else mon feb 05 2018 1012 pm i just watched the video you linked to watch it again and look at 229. Our smart series dimmer light switch offers soft start illumination 2 way switching as default and multi way wireless communication with other lightwave dimmers. The diagram you show will not work with most 2 way lighting.
Paul hibbert 25623 views. Switched live out x should be connected between the two switches. Free shipping on orders over 100. Now when i turn on both dimmers ill bridge the downstairs and upstairs circuits overloading the lights. A standard 2 way wiring system. Do the instructions include an alternative diagram for wiring in a typical uk installation.
A support and guidance section can also be found at wwwlightwaverf. Johnd 22 jun 2018 2. The lightwaverf 2 way dimmers are identical to the standard dimmer switch in apparance but are designed to be used only as a slave to perform 2 way switching. Now as per the lightwave wiring diagrams for 2 way switching. This video shows how to install and. Create your smart home with lightwave rated number one for smart home automation in the uk.
Simple installation standard wiring configurations make the smart light dimmer switch easy to diy install or via a suitably qualified electrician.
