There is only phase output taken from the inverter output terminal. How to connect automatic ups inverter to the home supply system.
How To Connect A Ups In Home Wiring Quora
Home inverter connection circuit diagram. Now according to the below ups connection diagram connect an extra wire phase to those appliances where we have already connected phase and neutral wires from power house db ie two wire as phase live as shown in the below fig. It is finely completed by interrelating the part leads itself and fusing the joints. According to your requirement connect the load to the inverter. Ups inverter wiring diagram with auto manual changeover switch system. I understand that the circuit will be completed by using inverter incomer neutralthe inverter output is going to tv socket i deliberately kept the home incomer 4 pole mcb off. A complete note on solar panel installation.
To easily understand the construction of a solar inverter lets discuss the following construction sample according to the circuit diagram initially do the assembling of the oscillator part which consist of the small components ic. Ups inverter wiring diagrams connection. Hello friends today i will make video on inverter circuit wiring diagram for house wiring fir distribution board my full discription video about house wiring is as below link so that you will get. Calculation about no of solar panels batteries rating backup time inverterups rating load and required watts. Related electrical wiring tutorial. In my home we have 3 phase connection using a 4 pole mcb as incomerthere is an inverter connected.

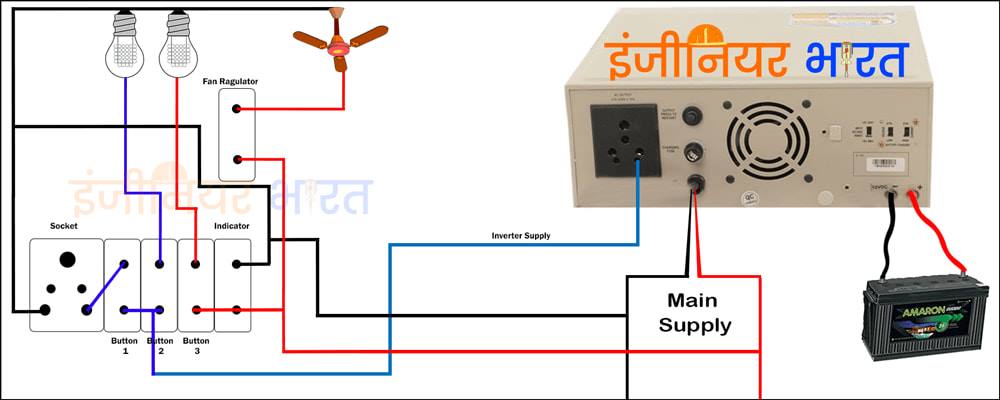

According to the below circuit diagram you can see that during load shedding light 3 fan and tv can be run by the inverter. Inverter connection diagram the circuit diagram for an inverter connection at home is given below.
