To test the amps or volts of your wind turbine or solar panel system with a handheld clamp on meter you must use a dc model. 2 wiring the amp gauge 3 hooking up the volt gauge.
Circuit Diagram With Ammeter H1 Wiring Diagram
Dc volt amp meter wiring diagram. It reveals the elements of the circuit as simplified forms and the power and signal connections between the devices. Assortment of volt amp meter wiring diagram. Can i just use the two wires from my amp gauge to hook up to my new volt meter gauge. 48 volt systems should use a 70 75 v olt meter. The way i had it setup for the past 3 weeks was thinner two wires red black to my 22ah battery. A wiring diagram is a simplified traditional photographic representation of an electric circuit.
Below is a rv electric wiring diagram or schematic including the. How to install a car volt amp gauge. Using an alternator with higher output capacity is dangerous and could cause a fire. The meter is great for tight places but the wiring diagrams show on the product page are troublesome. Black is connected to the source 12v battery. Amp gauge wiring 1 always disconnect the ground lead from the vehicle battery before wiring any gauge.
Additionally wiring diagram provides you with enough time frame during which the projects are to be finished. Dc 100v 10a voltmeter ammeter blue red led amp dual digital volt digital volt amp meter wiring diagram. A wind turbine should be connected to a separate meter than the solar panels. Use a dc amp meter for amp readings. However the lower diagram as drawn indicates that two positive inputs are required on the single positive input on the meter. Ebay volt amp meter how to duration.
12 volt battery systems should use a 15 volt meter. Dc motor wiring diagram 4 wire collections of dc motor wiring diagram ramsey wiring diagram schematics. The thicker red black blue are connected the following way. Wiring a 12 volt dc circuit requires a working knowledge of electronics and circuitry. Red is connected to the source 12v battery. The top diagram shows the proper and safe way to wire the meter into your system.

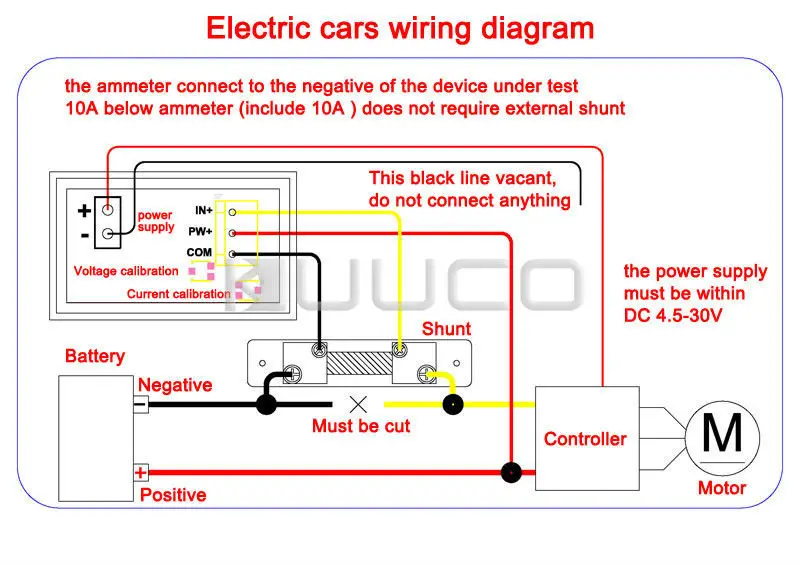

2 classic instruments amp gauge should only be used on vehicles with alternators rated at 60 amps or less. A volt gauge shows how much power your vehicles battery provides while the amp reading will tell you if the battery gets enough current to charge the system. Complete testreview of 10a 0 100v led dc volt and current meter duration. Ebay volt amp meter how to in this video we look at how you have to connect of the cheap ebay 100v 10a panel meters if you want to power it and read the values from the same source. I have an ampvolt meter just like the one you have in this tutorial.
