Whilst coupling up the 13pin plug to the connector takes a bit of getting used to as it requires a twist connection it does offer a few advantages. Wiring diagram for a 13pin euro trailer plug.
Gm 7 Plug Wiring Diagram Wiring Diagram
13 pin trailer plug wiring diagram uk. On the rear of the pins the numbers are marked in the plastic next to each pin. If you have a 13 pin socket fitted to your vehicle adaptors to plug in so you can use a normal 7 pin plug are available. Twin electrics is a 2 plug system which combines the single 7 pin 12n electrics socket with a 12s electrics socket. In some cases and more often in europe the trailer light will be connected using a 13 pin plug and socket. This supplies power to the road lighting of your trailer or caravan. Menu search 01392 216336 faq contact delivery basket.

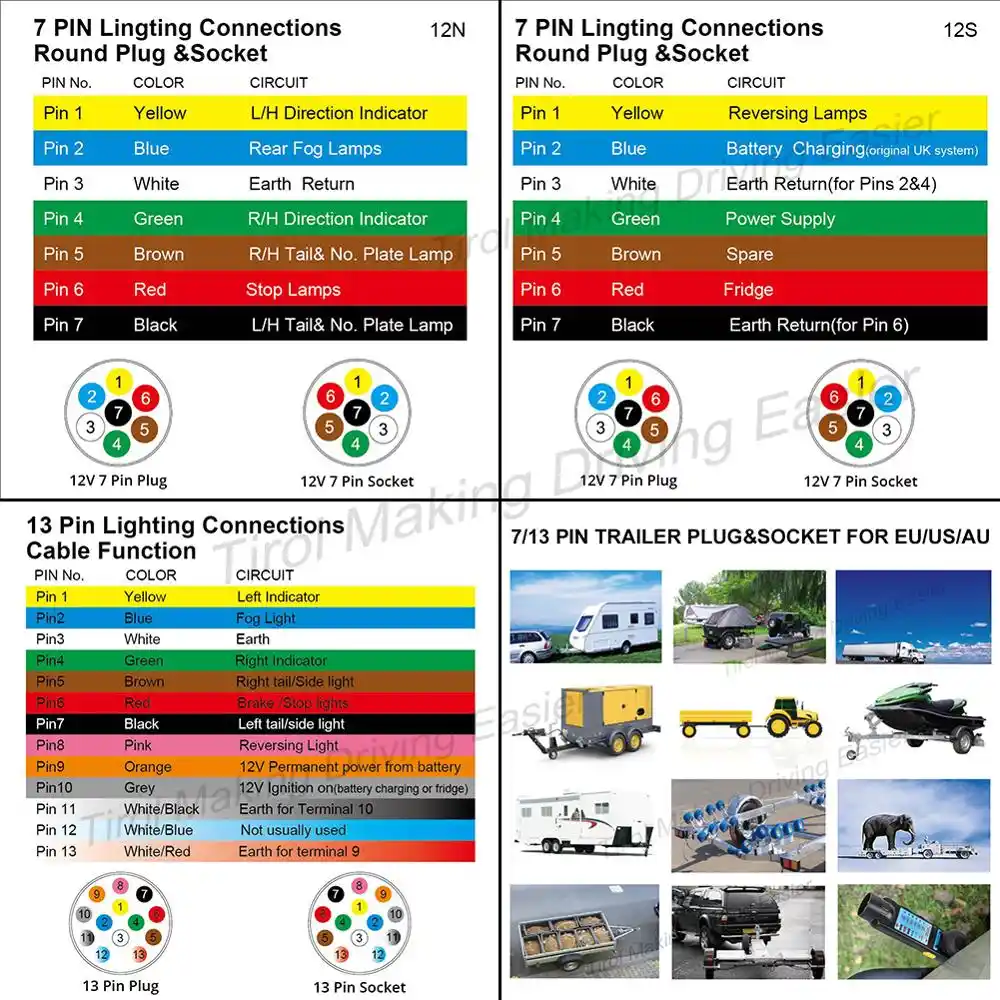

This connector is sometimes present on vintage vehicles and the actual wiring may be completely different from what the standard states which means that measuring before connecting is a good idea. Brought a new socket today but when changing i noticed i have a black and blue wire which i can not find on any 13 pin wireing diagramsany help would much appreciated. Below is a diagram of a 13 pin euro trailer plug with coloured pins as they are wired. Caravan wiring chart showing all the connections in the 13 pin euro plug cable colours and cable sizes for interior exterior. The table and diagram below explains the connections used on a 7 pin setup. The 13 pin euro type plug and socket is now fitted on most caravans to supply power and all the road lights.
The 7 pin n type plug and socket is still the most common connector for towing. Below is a diagram for the original plug and socket showing the functions of each pin. 13 pin trailer caravan plug socket wiring. When assembling a plug always remember to slide any gromets and. 13 pin trailer caravan plug socket wiring is not too difficult as the first 7 pins follow the old 12n n type wiring with 5 additional wires for reverse a switched and a live power supply. Wiring diagram for a 13 pin tow bar socket and plug many caravans built after 2008 have the new 13 pin connector for the electrical connections to the car.
You will need twin electrics if you require more power than what a single 7 pin socket can provide on a pre 2008 manufactured uk caravan post 2008 uk caravans are fitted with 13 pin connectors. Hi looking for some advice on wireing a new 13 pin plug for my towbar. This has now been replaced by 13 pin euro plugs on all new caravans. The 5 pin has a design and pin layout that is identical to the 7 pin iso 1724 connector with the exception for the lack of pin 1 l and pin 4 r. The pins usually have a small screw to retain the wire on the back.
